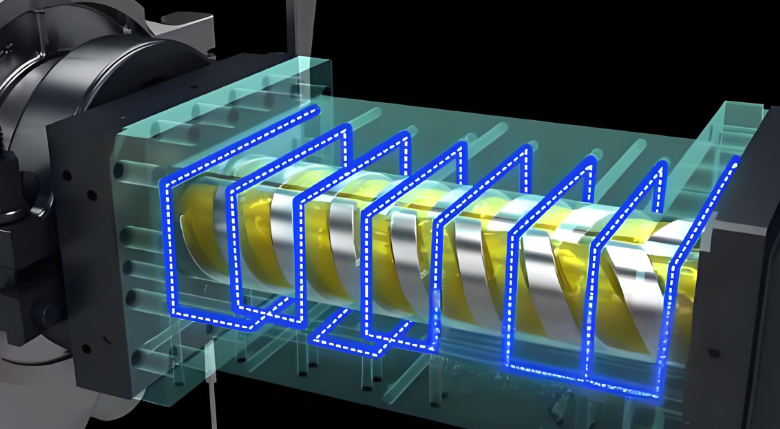

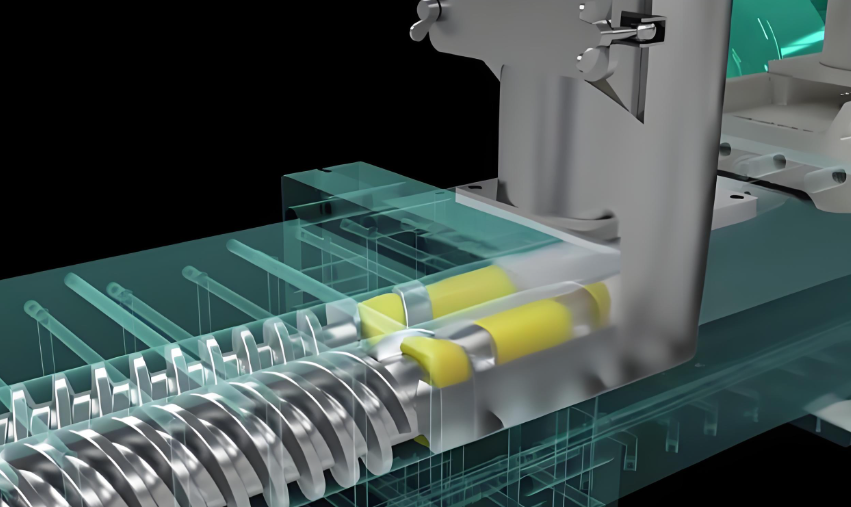

The screw and barrel assembly represents the “heart” of any extruder. These precision components work under extreme conditions:

• Temperature: 200-300°C continuous operation
• Pressure: 1,500-3,000 PSI
• Mechanical stress: Constant rotational shear forces
• Chemical exposure: Aggressive polymers and additives

Occurrence Rate: 85% of extruders experience screw/barrel wear issues
Risk Level: 🔴 HIGH RISK
Average Replacement Cost: $15,000-40,000 per set

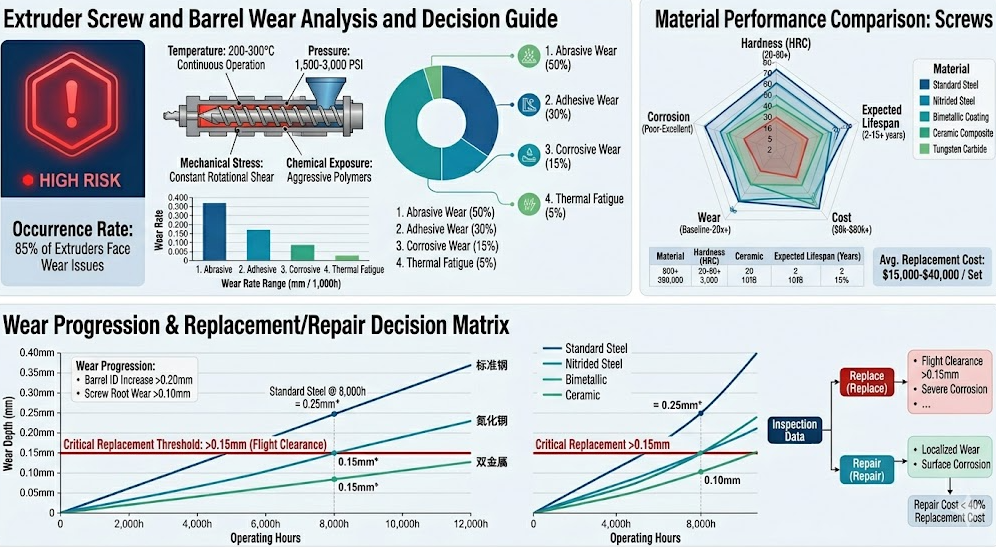

Understanding Wear Mechanisms

1. Abrasive Wear (50% of wear cases)

Caused by hard particles in the plastic material:

• Glass fiber reinforcement (10-40% loading)
• Mineral fillers (calcium carbonate, talc)
• Recycled plastic contamination
• Metallic particles from upstream equipment

Wear Rate: 0.05-0.15mm per 1,000 operating hours

2. Adhesive Wear (30% of wear cases)

Material sticks to screw/barrel surfaces:

• Polymer degradation creates sticky residue
• Thermal cycling causes material bonding
• Inadequate material flow leads to localized heating
• Difficult to remove without disassembly

Wear Rate: 0.02-0.08mm per 1,000 operating hours

3. Corrosive Wear (15% of wear cases)

Chemical degradation of metal surfaces:

• Halogenated polymers (PVC, PVDC) release corrosive gases
• Additives (flame retardants, stabilizers) accelerate corrosion
• Moisture in material promotes oxidation
• Temperature cycling accelerates chemical reactions

Wear Rate: 0.01-0.05mm per 1,000 operating hours

4. Thermal Fatigue (5% of wear cases)

Repeated heating and cooling cycles:

• Surface micro-cracking develops
• Material spalls off in small pieces
• Stress concentration at component edges
• Cumulative damage over time

Wear Rate: 0.005-0.02mm per 1,000 operating hours

Screw and Barrel Material Comparison

Material Type	Hardness (HRC)	Wear Resistance	Corrosion Resistance	Cost	Lifespan
Standard Steel	35-40	Baseline	Poor	$8,000-12,000	2-3 years
Nitrided Steel	50-55	3x better	Fair	$12,000-18,000	4-5 years
Bimetallic Coating	55-62	5x better	Good	$18,000-28,000	6-8 years
Ceramic Composite	65-72	8x better	Excellent	$35,000-50,000	10-12 years
Tungsten Carbide	70+	10x better	Excellent	$50,000-80,000	12-15 years

Wear Detection and Measurement

Visual Inspection Checklist

• ☐Surface scratches or gouges visible
• ☐Shiny spots indicating material adhesion
• ☐Discoloration suggesting corrosion
• ☐Chips or spalling at edges
• ☐Uneven wear patterns

Quantitative Measurement

Recommended Tools:

• Precision calipers (±0.01mm accuracy)
• Depth gauge for groove wear
• Ultrasonic thickness measurement
• Laser scanning for 3D profile

Measurement Points:

1. Screw root diameter (compression zone)
2. Barrel inner diameter (at feed, transition, metering zones)
3. Flight clearance (screw to barrel gap)
4. Groove depth (if applicable)

Critical Thresholds:

• Flight clearance >0.15mm = Replace screw
• Barrel diameter increase >0.20mm = Reline barrel
• Screw root wear >0.10mm = Replace screw
• Uneven wear pattern >0.05mm variance = Investigate cause

Proven Solutions to Extend Component Life

Solution 1: Upgrade to Bimetallic Screw and Barrel

Investment: $18,000-28,000
Implementation Time: 1-2 days
Expected Lifespan Extension: 2-3x longer

How Bimetallic Technology Works:

• Base layer: Tough steel core for structural strength
• Overlay layer: Hard wear-resistant material (typically tungsten carbide or ceramic)
• Bond: Metallurgical fusion for permanent adhesion
• Result: Superior wear resistance with maintained toughness

Performance Comparison:

• Standard steel: 2,000-3,000 operating hours before wear concerns
• Bimetallic: 6,000-8,000 operating hours
• Ceramic composite: 10,000-12,000 operating hours

Solution 2: Implement Material Filtration System

Investment: $5,000-8,000
Implementation Time: 1 day
Wear Reduction: 40-60%

Filtration Components:

• Magnetic separator – Removes ferrous metal particles
• Screen filter – Removes large contaminants (>100 microns)
• Melt filter – Removes fine particles (>40 microns)
• Vacuum degassing – Removes moisture and volatile compounds

Installation Location: Between hopper and extruder inlet

Maintenance Requirements:

• Clean magnetic separator: Weekly
• Replace screen filter: Every 500 operating hours
• Replace melt filter: Every 1,000 operating hours
• Check vacuum system: Monthly

Solution 3: Optimize Screw Design for Material Type

Investment: $12,000-18,000 for new screw
Implementation Time: 2-3 days
Wear Reduction: 25-35%

Design Considerations:

Material Type	Recommended Compression Ratio	Flight Depth	Pitch	Wear Mitigation
Unfilled PE/PP	3:1	Standard	Standard	Standard steel OK
Glass-filled PA	2.5:1	Shallow	Tight	Bimetallic required
Mineral-filled PP	2.5:1	Shallow	Tight	Bimetallic required
Recycled plastic	2:1	Very shallow	Very tight	Ceramic coating
PVC	2:1	Shallow	Tight	Nitrided or bimetallic

Solution 4: Establish Preventive Maintenance Schedule

Monthly Tasks (2 hours):

• Visual inspection of screw/barrel
• Check for unusual noise or vibration
• Monitor motor current draw
• Record operating hours

Quarterly Tasks (4 hours):

• Measure flight clearance
• Inspect for adhesive material buildup
• Clean cooling system
• Check heater element performance

Semi-Annual Tasks (8 hours):

• Detailed wear measurement
• Thermal imaging to detect hot spots
• Pressure profile analysis
• Material flow optimization

Annual Tasks (16 hours):

• Complete disassembly and inspection
• Professional cleaning and restoration
• Replacement of wear components
• Performance baseline testing

Real-World Case Study

Company: Automotive Component Manufacturer
Material: Glass-filled Nylon (30% glass content)
Problem: Screw wear causing 8% product rejection, frequent replacements
Previous Solution: Standard steel screws, replaced every 2 years
New Solution: Bimetallic screw + filtration system + optimized design

Results:

• Screw lifespan: 2 years → 6 years
• Product rejection: 8% → 1.5%
• Maintenance downtime: -65%
• Cost per operating hour: -58%
• ROI: 18 months

Wear Progression Timeline

Operating Hours	Standard Steel	Nitrided Steel	Bimetallic	Ceramic
1,000	Minimal wear	Minimal wear	No visible wear	No visible wear
2,000	0.05mm wear	0.02mm wear	0.01mm wear	<0.005mm wear
4,000	0.12mm wear	0.04mm wear	0.02mm wear	0.01mm wear
6,000	0.18mm wear	0.07mm wear	0.03mm wear	0.015mm wear
8,000	0.25mm wear*	0.10mm wear	0.04mm wear	0.02mm wear
10,000	Replace needed*	0.13mm wear	0.05mm wear	0.025mm wear

*Exceeds acceptable threshold

Key Performance Indicators to Monitor

KPI	Measurement Method	Normal Range	Action Required
Flight Clearance	Precision calipers	0.05-0.10mm	>0.15mm = Replace
Barrel ID Increase	Ultrasonic gauge	<0.05mm/year	>0.10mm/year = Reline
Motor Current	Ammeter	Baseline ±5%	>Baseline +15% = Investigate
Pressure Profile	Pressure transducers	Stable curve	Erratic = Wear issue
Product Quality	Statistical analysis	<2% defects	>5% defects = Investigate

When to Replace vs. Repair

Replace if:

• Flight clearance exceeds 0.15mm
• Screw root diameter worn >0.10mm
• Barrel inner diameter increased >0.20mm
• Corrosion damage is extensive
• Thermal fatigue cracking observed
• Cost of repair exceeds 40% of replacement

Repair/Reline if:

• Barrel wear is localized to one zone
• Screw has minor adhesive buildup
• Surface corrosion is superficial
• Cost of repair is <40% of replacement
• Component still meets functional requirements

Cost-Benefit Analysis: Upgrade Decision

Scenario	Annual Operating Hours	Material Type	Recommendation
1,000 hrs/year, unfilled plastic	1,000	PE/PP	Standard steel
2,000 hrs/year, unfilled plastic	2,000	PE/PP	Nitrided steel
3,000 hrs/year, glass-filled	3,000	PA/PBT	Bimetallic
4,000+ hrs/year, mineral-filled	4,000+	PP/PE	Bimetallic or ceramic
Continuous, recycled plastic	8,000+	Mixed	Ceramic composite

• Wear is inevitable but manageable – Proper material selection and maintenance extend component life 3-5x
• Filtration is cost-effective – $5,000 investment reduces wear by 40-60%
• Monitor continuously – Track wear metrics to predict replacement needs
• Upgrade strategically – Bimetallic components pay for themselves through reduced downtime
• Preventive maintenance saves money – Regular inspection costs 70% less than emergency replacement
