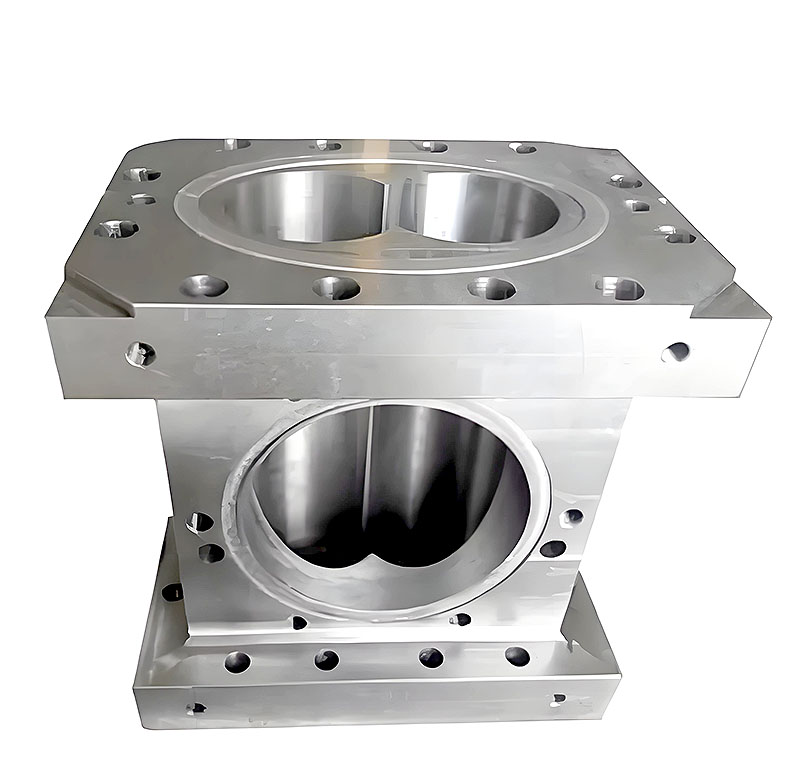

Barrel（Body)

Introduction: Barrels are used as an important part for extruder Accessories

Because of the difference of raw materials, the requirements for the Barrels are different. For example, when some glass fiber materials are extruded, the wear is larger and the gap between the screw and the Barrels is strictly required. The balance of wear resistance and cost is need to be taken full consideration

WIDELY USED

VIDEO

Product Video

Standard Barrel Parameter Table

Model	Size (mm) W × H × L	Hole Diameter (mm)	Center Distance (mm)
BLM-20	115 × 105 × 132	Φ23	18.4
BLM-30	135 × 115 × 120	Φ30.6	26
BLM-35	140 × 120 × 140	Φ36	30
BLM-36	160 × 140 × 150	Φ36	30
BLM-40	175 × 145 × 160	Φ41.6	34.5
BLM-50	190 × 150 × 190	Φ51	42
BLM-52	200 × 155 × 210	Φ52	43
BLM-53	210 × 160 × 220	Φ53.3	48
BLM-58	220 × 175 × 240	Φ58	48
BLM-60	210 × 170 × 240	Φ60	52
BLM-65	210 × 170 × 240	Φ63	52
BLM-75	260 × 200 × 290	Φ71.8	60
BLM-85	280 × 215 × 320	Φ81.9	67.8
BLM-92	310 × 240 × 360	Φ92	78
BLM-95	310 × 240 × 360	Φ94	78
BLM-110	330 × 240 × 420	Φ109	91.5
BLM-125	390 × 290 × 500	Φ125	98
BLM-135	370 × 300 × 410	Φ134	110

SOLID BARREL

Material Grade	Equivalent steels for	Harden ability	Mechanical strength	Price	Remarks
BLM01	45	★	★	★	★ slight
BLM02	42CrMo	★★★	★★★	★★	★★ medium
BLM03	38CrMoAla	★★★	★★★	★★★	★★★ Strong

BARREL WITH INSTALLED LINER

• Made of PM-HIP solid • WR13

Performance Comparison

Material Grade	Wear	Corrosion	Toughness	Strength	Machining	(HRC)Hardness	Application
BLM01	★★★	★★★★★	★	★★★	★★	55 ~ 58	Wear Resistance
BLM02	★★★★★	★★★	★★★★★	★★★★★	★★★★	60 ~ 62	Wear + Corrosion
BLM03	★★	/	★★★★	★★★★★	★★★★★	60 ~ 62	Wear Resistance
BLM04	★★	/	★★★★★	★★★★★	★★★★★	60 ~ 62	Wear Resistance
BLM05	★★★	/	★★★	★★★★★	★★★★★	60 ~ 62	Wear Resistance
BLM06	★★★★	/	★★	★★★	★★★	59 ~ 61	Wear Resistance

CHOOSE

WHY CHOOSE US

1、independent research and development of malenals and processes can ensure the peromance and proces ofmatenials to the maximum exent, and grealy prolong the service life compared with ordinary products, while the main supplier in the market only buy raw materials for machining.

2、indeendenly develop the process ofkey products, and constanly improve and enance the old process to achieve the best product performanc.For example, wechanged the producion process for barrel liner and iner from siniening to spray welding. Which increased the produc senvice lile 3-5 times then normal produclis

① The liner alloy layer :old sintering process

② Characteristics and advantages of the newspraywelding process: the product is better in dense, thehardness can reach more than 56 degrees, the servicelife of the product is 3-5 times that of the sinteringprocess, low cost, less waste.

3、Continuously improving and optimizing product apearance ofthe composite layer , which greatly improved the serice fe of products.for the separately inner andBarrel Liner, we changed the Composite layer from thin 8 shape to elipse lat angle shape, which increased the product service life greaty.

BarrelBody
